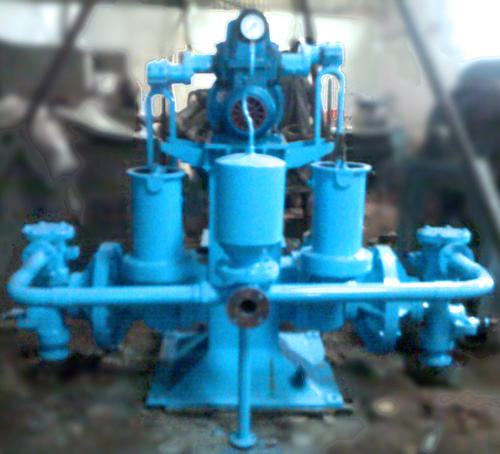

Diaphragm Pump
Diaphragm Pump
Product Code : 35
Price And Quantity
- Minimum Order Quantity
- 1 Piece
Product Description
The Diaphragm Pump machine is widely used in Ceramic Industry for Very Efficient transferring of slurry (At very high Pressure) from one place to another and it is also used for Pumping the slurry, into the Filter Press, to filter out the water for formation of the filter cakes. Arranged for individual drive with Double end Reduction Gear Box, and 15 H.P., 1440 R.P.M. Sq. Cage. S.P.A.C. Motor.
| DESCRIPTIONS | |
| PUMP BODY | Fabricated from M.S. plate (of specification IS: 2062, GR A), of Heavy Duty Design, properly welded and Machined. |
| CYLINDER | Two Nos. made of Alloy C.I. (IS: 210 Grade 20) properly machined with precision and is suitably designed to withstand high pressure. |
| PISTON | Two Nos. made of Alloy C.I. (having High Anti-corrosive properties) very smoothly machined to perfection to suit the cylinder bore. |
| SUCTION, DELIVERY & VALVE CHAMBER | Made of C.I. properly machined and designed suitably to withstand high pressure. |
| DRIVE | Through Motor, Double End Gear Box and V-belts. |
SPECIFICATIONS | |
| SIZE | XH - (T) |
| RAM | 115 mm. |
| STROKE | 225 mm. |
| SUCTION | 75 mm. |
| DELIVERY | 65 mm. |
| CAPACITY | 100 Liters / Min. |
| SPEED | 36 R.P.M. |
| MOTOR RECOMMENDED | 15 H.P 1440 R.P.M Sq. Cage. S.P.A.C. ABB Make.
|
Trade Information
- Payment Terms
- Cheque, Telegraphic Transfer (T/T), Cash Advance (CA)
- Delivery Time
- 6 - 8 Week
- Packaging Details
- Standard
- Main Export Market(s)
- Australia, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia, North America
- Main Domestic Market
- All India
