Rotary Kiln (Batch Type)
Product Code : 02
Price And Quantity
- Minimum Order Quantity
- 1 Piece
Product Description
Leveraging on our innovative production technology and hi-tech facilities, we have affirmed ourselves as an eminent manufacturer, supplier and exporter of Rotary Kiln (Batch Type). To fulfill the preferred needs of the clients, we provide these products in different capacities, models and specifications. Used in metallurgy, chemistry and refractory, this Rotary Kiln (Batch Type) is highly appreciated and demanded all across the international market fir its striking features that are mentioned below:
- Low heat consumption
- Corrosion resistance
- Compact design
- Long lasting
Other Details:

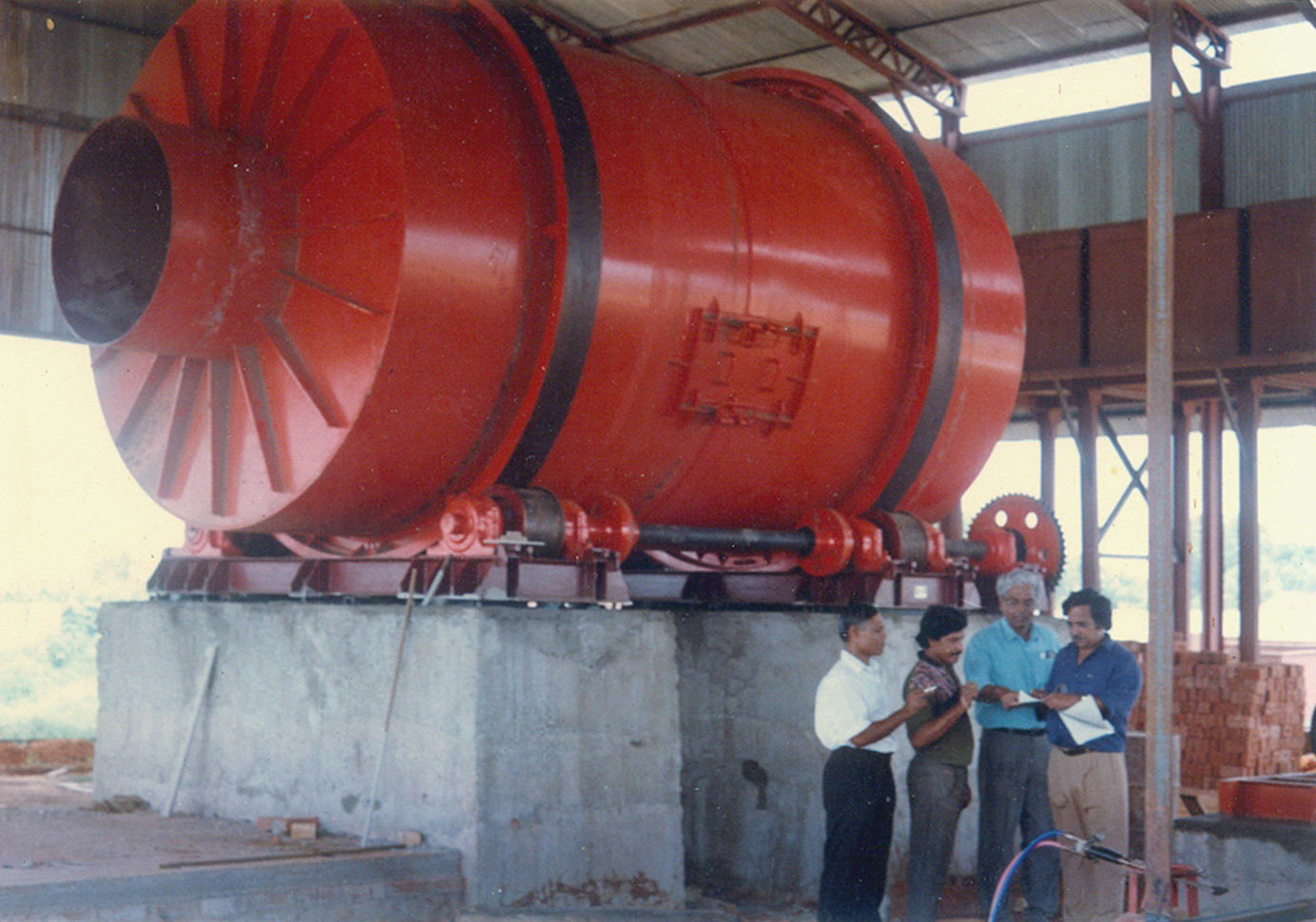

The machine is used for making Zinc Fume. The shell of the Kiln is made from M.S. plate, electrically welded and properly balanced. Two Nos. Tyres made of Alloy steel are fitted at the both ends of the shell. The shell is mounted Roller on which the shell rotates. There is one feeding and discharging mouth at the middle of the shell from which the material can be fed and discharged. The machine is driven through Gear Box, and Motor.
| Technical Specification | |
| SIZE OF THE SHELL | 1500 mm. Dia. X 4000 mm. Long |
| CAPACITY | 2000 Kgs. / Batch |
| MILL SPEED | 0.5 1 R. P. M. |
| MAXIMUM OPERATING TEMP | 1000O - 1150O C |
| FUEL | HSD / Furnace Oil |
| NO. OF BURNER | One |
| TYPE OF BURNER | Nozzle Mix |
| MOTOR RECOMMENDED | 15 H.P. 1000 R.P.M. sq. cage T.E.F.C. |
| We are manufacturing all Of standard make ROTARY KILN (Batch Type) | |
